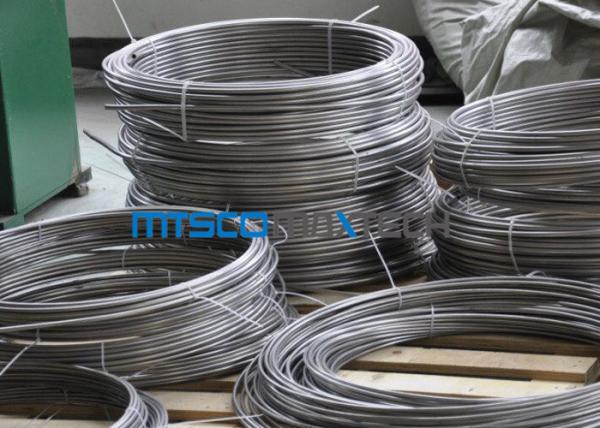

1.4404 / 1.4301 Size 9.53*20 BWG Stainelss Steel Coiled Tube For Oil And Gas
Chemical Composition
| | C(max) | Si(max) | Mn(max) | P(max) | S(max) | Cr | Ni | Mo | Ti |
| TP304/1.4301 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-10.5 | | |
| TP304L/1.4307 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | | |
| TP304H/1.4948 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | | |
| TP316/1.4401 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |
| TP316L/1.4404 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |
| TP316Ti/1.4571 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 0.7>5x(C+N) |
| TP321/1.4541 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-12.0 | | 0.7>5x(C+N) |
| TP317L/1.4449 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 11.0-14.0 | 3.0-4.0 | |
| TP347H/1.4912 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-13.0 | | |
| TP309S/1.4833 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 22.0-24.0 | 12.0-15.0 | 0.75 | |
| TP310S/1.4845 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 24.0-26.0 | 19.0-22.0 | 0.75 | |
Where the coiled tubing used ?
1 . Control tubing in oil and gas well
2 . Instrument tubing
3 . Chemicl injection tubing line
4 . Pre-insulated tubing
5 . Electric heating or steam heating tubing line
6 . Hater tubing line
| Birmingham Wire Gauge BWG |
| | Wall Thickness | | Wall Thickness |
| BWG | IN | MM | BWG | IN | MM |
| 0 | 0.340 | 8.64 | 19 | 0.042 | 1.07 |
| 1 | 0.300 | 7.62 | 20 | 0.035 | 0.89 |
| 2 | 0.284 | 7.21 | 21 | 0.032 | 0.81 |
| 3 | 0.259 | 6.58 | 22 | 0.028 | 0.71 |
| 4 | 0.238 | 6.05 | 23 | 0.025 | 0.64 |
| 5 | 0.220 | 5.59 | 24 | 0.022 | 0.56 |
| 6 | 0.203 | 5.16 | 25 | 0.020 | 0.51 |
| 7 | 0.180 | 4.57 | 26 | 0.018 | 0.46 |
| 8 | 0.165 | 4.19 | 27 | 0.016 | 0.41 |
| 9 | 0.148 | 3.76 | 28 | 0.014 | 0.36 |
| 10 | 0.134 | 3.40 | 29 | 0.013 | 0.33 |
| 11 | 0.120 | 3.05 | 30 | 0.012 | 0.30 |
| 12 | 0.109 | 2.77 | 31 | 0.010 | 0.25 |
| 13 | 0.095 | 2.41 | 32 | 0.009 | 0.23 |
| 14 | 0.083 | 2.11 | 33 | 0.008 | 0.20 |
| 15 | 0.072 | 1.83 | 34 | 0.007 | 0.18 |
| 16 | 0.065 | 1.65 | 35 | 0.005 | 0.13 |
| 17 | 0.058 | 1.47 | 36 | 0.004 | 0.10 |
| 18 | 0.049 | 1.24 | | | |
MTSCO is a leading manufacturer who is specialized in seamless coiled tubing produce . Stainless steel seamless coiled tubing final surface is bright annealed. According to standard very strictly, tubes which produced by us always have correct OD and WT tolerance. They are very popular in military, semiconductor, pharmaceutical biotechnology, precision instruments, hydraulic parts, chemicals industry, boilers and heat exchangers, aerospace industry, automotive industry, electronics, petroleum exploration, precision machinery, rail transportation, shipbuilding plants, air-conditioning industry, solar industry, water heater industry etc. They can be used in many others industries also .
